XKM/JTS2系列端子，端子中的“變形金剛”

產品中心

XKM/JTS2系列端子，端子中的“變形金剛”

XKM/JTS2系列端子，端子中的“變形金剛”

如果您有任何問題可以聯系我們！
聯系我們
一、產品概述 Genera
        XKM/JTS2系列多用途接線端子系專為各類電控配電設備，成套裝置及組合式終端電器箱中配線而設計。產品的額定絕緣電壓690V, 額定工作電壓380V，進線端連接導線的******截面為120mm2，出線端按連接回路數的多少以及接線方式的不同，分別可連接導線的截面為2.5-120mm2。該產品結構新穎獨特; 接線牢固可靠；使用靈活方便?？勺鞲黝愲姎庋b置中母線排、大電流端子、接零、接地端子、等電位端子之用。
        XKM/JTS2 series terminal block is designed for wiring in electric control distribution equipment, complete equipment and terminal apparatus , etc.. The product is of rated insulation voltage 690V, rated working voltage 380V, max section of inlet terminal conductor 120mm2. According to different circuit number and connection ways, the section of outlet terminal reaches 2.5-120mm2. This product structure has advantages of original structure, firm connection
and flexible operation. In addition, it can also serve as electric equipment busbar, heavy-current terminal block, neutral terminal, grounding terminal, equipotential terminal, etc..
二、結構特點 Structure features
        XKM/JTS2多用途端子由導電件、絕緣座和防護罩組成，體積小巧，結構可靠，其進線端既可以將導線直接接入(簡式連接)、也可用OT端頭(線鼻子)連接(板式連接)，亦可接入寬度≤30MM的銅排，其出線端則統一為筒式連接。壓線螺釘?shù)牡撞繛樘刂频那蛐螇壕€時不僅不傷導線，而且對導線具有足夠大的擠壓力，接觸更可靠。
        XKM/JTS2 series terminal block cover, with compact volume and reliable structure. Through its inlet terminal, the conductor can be connected directly (simple connection), or connected withOT lug (panel connection), in addition, this
inlet terminal also allows the copper busbar not exceeding 30MM to enter, and all connections at the outlet terminal are of the barrel type. The bottom of crimping screw is spherical shape, which takes no damage over the conductor when crimping, and even brings big enough extrusion force over the conductor and have more reliable contact.
三、安裝與使用 Installation & Use
        本系列產品提供了兩種安裝方式：1、直接在底板上打孔安裝(僅限外形尺寸為78×63×36，安裝螺釘為M5)；2、安裝在TH一35導軌(頂帽軌)上。接入導線建議使用多芯線，導線插入盲孔時要確認插到底后方能往下擰螺釘，以防誤接。當接入導線截面較小，且導線絕緣能塞進接線孔時，在確保導體接觸可靠的前提下，允許絕緣進入接線孔。當使用時或線路進行維護需要打開防護罩時，只需在防護罩的搭勾處向內用手輕捏便可取下，亦可用螺絲刀從搭勾處插入，輕輕旋轉即可取下。裝防護罩時要在四個搭勾處向下施壓，確保每個搭勾全部卡在孔內方可。
        There are two ways to install this product: 1. Drill a hole in the bottom plate directly and install (only for the product whose outline size is 78×63×36，and mounting screw is M5)； 2. Install it on TH一35 rail (top-hat rail). It is suggestedthatmulti-corewireshould be used for connecting conductors. And only the conductor is inserted into the bottom of blind hole thoroughly, could the screw be tightened down to prevent wrong connection. When conductor section is small, and conductor insulator can be stuffed into the connection hole, the insulator is allowed to enter into the connection hole on the premise of reliable contact of conductor. If the protective cover is required to open, pinch the lap of protective cover inward slightly, insert a screwdriver into the lap, then rotate it slightly. When to assemble the protective cover, apply the pressure to four laps, and make sure every lap into the hole.
四、訂貨須知 Notification of order
        訂貨時請注明型號(或訂貨號)和數量即可。 XKM/JTS2系列端子，可定制非標各種進線和出線平方線數。
        When ordering, please indicate the model (or order No.) and quantity. The inlet and outlet wire size of XKM/JTS2 series terminal block can be customized.

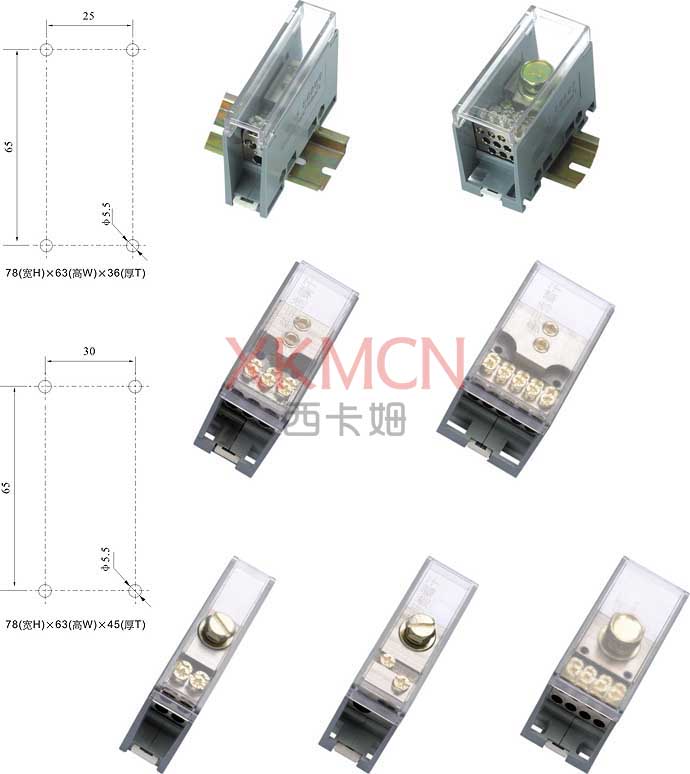

五、安裝尺寸 Mounting Dimension
型號：XKM/JTS2-25B
結構：一路進,一路出,大電流端子 One-inlet, one-outlet, high current terminal
截面：進線Line10-25mm2(板式接線Wiring Plate)
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110110

型號：XKM/JTS2-25B
結構：一路進,一路出,大電流端子 One-inlet, one-outlet, high current terminal
截面：進線Line10-25mm2(板式接線Wiring Plate)
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110110

型號：XKM/JTS2-25B/2×25
結構：一路進,二路出,分線端子 One-inlet, two-outlet, sub-line terminal
截面：進線Line 10-25mm2,出 線Outlet 6-25mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110112

型號：XKM/JTS2-25B/4×16
結構：一路進,四路出,分線端子 One-inlet, four-outlet, sub-line terminal
截面：進線Line 10-25mm2,出 線Outlet 2.5-16mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110113

型號：XKM/JTS2-25B/6×6
結構：一路進,六路出,分線端子 One-inlet, six-outlet, sub-line terminal
截面：進線Line 10-25mm2,出 線Outlet 1.5-6mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110114

型號：XKM/JTS2-25B/9×6
結構：一路進,九路出,分線端子 One-inlet, nine-outlet, sub-line terminal
截面：進線Line 10-25mm2,出 線Outlet 1.5-6mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110115

型號：XKM/JTS2-35
結構：一路進,一路出,大電流端子 One-inlet, one-outlet, high current terminal
截面：進線Line 10-35mm2,(筒 式出線Drum Outlet)
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110116

型號：XKM/JTS2-70
結構：一路進,一路出,大電流端子 One-inlet, one-outlet, high current terminal
截面：進線Line 35-70mm2,(筒 式出線Drum Outlet)
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110117
型號：XKM/JTS2-35/2×16
結構：一路進,二路出,分線端子 One-inlet, two-outlet, sub-line terminal
截面：進線Line 10-35mm2,出線Outlet 2.5-16mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110118

型號：XKM/JTS2-70/2×16
結構：一路進,二路出,分線端子 One-inlet, two-outlet, sub-line terminal
截面：進線Line 35-70mm2,出線Outlet 2.5-16mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110119

型號：XKM/JTS2-35/2×25
結構：一路進,二路出,分線端子 One-inlet, two-outlet, sub-line terminal
截面：進線Line 10-35mm2,出線Outlet 6-25mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110120

型號：XKM/JTS2-70/2×25
結構：一路進,二路出,分線端子 One-inlet, two-outlet, sub-line terminal
截面：進線Line 35-70mm2,出線Outlet 6-25mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110121

型號：XKM/JTS2-35/4×16
結構：一路進,四路出,分線端子 One-inlet, four-outlet, sub-line terminal
截面：進線Line 10-35mm2,出線Outlet 2.5-16mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110122

型號：XKM/JTS2-70/4×16
結構：一路進,四路出,分線端子 One-inlet, four-outlet, sub-line terminal
截面：進線Line 35-70mm2,出線Outlet 2.5-16mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110123

型號：XKM/JTS2-35/6×6
結構：一路進,六路出,分線端子 One-inlet, six-outlet, sub-line terminal
截面：進線Line 10-35mm2,出線Outlet 1.5-6mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110124

型號：XKM/JTS2-70/6×6
結構：一路進,六路出,分線端子 One-inlet, six-outlet, sub-line terminal
截面：進線Line 35-70mm2,出線Outlet 1.5-6mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110125
型號：XKM/JTS2-35/9×6
結構：一路進,九路出,分線端子 One-inlet, nine-outlet, sub-line terminal
截面：進線Line 10-35mm2,出線Outlet 1.5-6mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110126

型號：XKM/JTS2-70/9×6
結構：一路進,九路出,分線端子 One-inlet, nine-outlet, sub-line terminal
截面：進線Line 35-70mm2,出線Outlet 1.5-6mm2
外形尺寸：78(寬Wide)×54(高High)×21(厚Thick)
訂貨號Order No . 110127

型號：XKM/JTS2-35B
結構：一路進,一路出,大電流端子 One-inlet, one-outlet, high current terminal
截面：進線Line 10-35mm2(板式接線Wiring Plate)
外形尺寸：78(寬Wide)×54(高High)×25(厚Thick)
訂貨號Order No . 110128

型號：XKM/JTS2-35B/2×35
結構：一路進,二路出,分線端子 One-inlet, two-outlet, sub-line terminal
截面：進線Line 10-35mm2,出 線Outlet 10-35mm2
外形尺寸：78(寬Wide)×54(高High)×25(厚Thick)
訂貨號Order No . 110129

型號：XKM/JTS2-35B/4×25
結構：一路進,四路出,分線端子 One-inlet, four-outlet, sub-line terminal
截面：進線Line 10-35mm2,出 線Outlet 10-25mm2
外形尺寸：78(寬Wide)×54(高High)×25(厚Thick)
訂貨號Order No . 110130

型號：XKM/JTS2-95
結構：一路進,一路出,大電流端子 One-inlet, one-outlet, high current terminal
截面：進線Line 50-95mm2,( 筒 式出線Drum Outlet)
外形尺寸：78(寬Wide)×54(高High)×25(厚Thick)
訂貨號Order No . 110131

型號：XKM/JTS2-35/2×35
結構：一路進,二路出,分線端子 One-inlet, two-outlet, sub-line terminal
截面：進線Line 10-35mm2,出 線 Outlet 10-35mm2
外形尺寸：78(寬Wide)×54(高High)×25(厚Thick)
訂貨號Order No . 110132

型號：XKM/JTS2-95/2×35
結構：一路進,二路出,分線端子 One-inlet, two-outlet, sub-line terminal
截面：進線Line 50-95mm2,出 線 Outlet 10-35mm2
外形尺寸：78(寬Wide)×54(高High)×25(厚Thick)
訂貨號Order No . 110133
型號：XKM/JTS2-35/4×25
結構：一路進,四路出,分線端子 One-inlet, four-outlet, sub-line terminal
截面：進線Line 10-35mm2,出 線 Outlet 6-25mm2
外形尺寸：78(寬Wide)×54(高High)×25(厚Thick)
訂貨號Order No . 110134

型號：XKM/JTS2-95/4×25
結構：一路進,四路出,分線端子 One-inlet, four-outlet, sub-line terminal
截面：進線Line 50-95mm2,出 線 Outlet 6-25mm2
外形尺寸：78(寬Wide)×54(高High)×25(厚Thick)
訂貨號Order No . 110135

型號：XKM/JTS2-50B/2×50
結構：一路進,二路出,分線端子 One-inlet, two-outlet, sub-line terminal
截面：進線Line 16-50mm2,出 線 Outlet 16-50mm2
外形尺寸：78(寬Wide)×54(高High)×28(厚Thick)
訂貨號Order No . 110136

型號：XKM/JTS2-50B/6×16
結構：一路進,六路出,分線端子 One-inlet, six-outlet, sub-line terminal
截面：進線Line 16-50mm2,出 線 Outlet 6-16mm2
外形尺寸：78(寬Wide)×54(高High)×28(厚Thick)
訂貨號Order No . 110137

型號：XKM/JTS2-50B/9×10
結構：一路進,九路出,分線端子 One-inlet, nine-outlet, sub-line terminal
截面：進線Line 16-50mm2,出 線 Outlet 2.5-10mm2
外形尺寸：78(寬Wide)×54(高High)×28(厚Thick)
訂貨號Order No . 110138

型號：XKM/JTS2-70/2×50
結構：一路進,二路出,分線端子 One-inlet, two-outlet, sub-line terminal
截面：進線Line 35-70mm2,出 線 Outlet 16-50mm2
外形尺寸：78(寬Wide)×54(高High)×28(厚Thick)
訂貨號Order No . 110139

型號：XKM/JTS2-35/6×16
結構：一路進,六路出,分線端子 One-inlet, six-outlet, sub-line terminal
截面：進線Line 10-35mm2,出 線 Outlet 2.5-16mm2
外形尺寸：78(寬Wide)×54(高High)×28(厚Thick)
訂貨號Order No . 110140

型號：XKM/JTS2-70/6×16
結構：一路進,六路出,分線端子 One-inlet, six-outlet, sub-line terminal
截面：進線Line 35-70mm2,出 線 Outlet 2.5-16mm2
外形尺寸：78(寬Wide)×54(高High)×28(厚Thick)
訂貨號Order No . 110141
型號：XKM/JTS2-35/9×10
結構：一路進,九路出,分線端子 One-inlet, nine-outlet, sub-line terminal
截面：進線Line 10-35mm2,出 線 Outlet 2.5-10mm2
外形尺寸：78(寬Wide)×54(高High)×28(厚Thick)
訂貨號Order No . 110142

型號：XKM/JTS2-70/9×10
結構：一路進,九路出,分線端子 One-inlet, nine-outlet, sub-line terminal
截面：進線Line 35-70mm2,出 線 Outlet 2.5-10mm2
外形尺寸：78(寬Wide)×54(高High)×28(厚Thick)
訂貨號Order No . 110143

型號：XKM/JTS2-120B
結構：一路進,一路出,大電流端子 One-inlet, one-outlet, high current terminal
截面：進線Line 70-120mm2,(板式接線Wiring Plate)
外形尺寸：78(寬Wide)×60(高High)×36(厚Thick)
訂貨號Order No . 110144

型號：XKM/JTS2-120B/2×70
結構：一路進,二路出,分線端子 One-inlet, two-outlet, sub-line terminal
截面：進線Line 70-120mm2,出線Outlet 25-70mm2
外形尺寸：78(寬Wide)×60(高High)×36(厚Thick)
訂貨號Order No . 110145

型號：XKM/JTS2-120B/6×25
結構：一路進,六路出,分線端子 One-inlet, six-outlet, sub-line terminal
截面：進線Line 70-120mm2,出線Outlet 6-25mm2
外形尺寸：78(寬Wide)×60(高High)×36(厚Thick)
訂貨號Order No . 110146

型號：XKM/JTS2-120B/8×16
結構：一路進,八路出,分線端子 One-inlet, eight-outlet, sub-line terminal
截面：進線Line 70-120mm2,出線Outlet 6-16mm2
外形尺寸：78(寬Wide)×60(高High)×36(厚Thick)
訂貨號Order No . 110147

型號：XKM/JTS2-120B/12×6
結構：一路進,十二路出,分線端子 One-inlet, twelve-outlet, sub-line terminal
截面：進線Line 70-120mm2,出線Outlet 1.5-6mm2
外形尺寸：78(寬Wide)×60(高High)×36(厚Thick)
訂貨號Order No . 110148

型號：XKM/JTS2-95/2×70
結構：一路進,二路出,分線端子 One-inlet, two-outlet, sub-line terminal
截面：進線Line 50-95mm2,出線Outlet 25-70mm2
外形尺寸：78(寬Wide)×60(高High)×36(厚Thick)
訂貨號Order No . 110149
型號：XKM/JTS2-95/6×25
結構：一路進,六路出,分線端子 One-inlet, six-outlet, sub-line terminal
截面：進線Line 50-95mm2,出線Outlet 6-25mm2
外形尺寸：78(寬Wide)×60(高High)×36(厚Thick)
訂貨號Order No . 110150

型號：XKM/JTS2-95/8×16
結構：一路進,八路出,分線端子 One-inlet, eight-outlet, sub-line terminal
截面：進線Line 50-95mm2,出線Outlet 6-16mm2
外形尺寸：78(寬Wide)×60(高High)×36(厚Thick)
訂貨號Order No . 110151

型號：XKM/JTS2-95/12×6
結構：一路進,十二路出,分線端子 One-inlet, Twelve-outlet, sub-line terminal
截面：進線Line 50-95mm2,出線Outlet 1.5-6mm2
外形尺寸：78(寬Wide)×60(高High)×36(厚Thick)
訂貨號Order No . 110152

型號：XKM/JTS2-150B
結構：一路進,一路出,大電流端子 One-inlet, one-outlet, high current terminal
截面：進線Line 70-150mm2,(板式接線Wiring Plate)
外形尺寸：78(寬Wide)×54(高High)×45(厚Thick)
訂貨號Order No . 110153

型號：XKM/JTS2-150B/2×95
結構：一路進,二路出,分線端子 One-inlet, two-outlet, hsub-line terminal
截面：進線Line 70-150mm2,出線Outlet 50-95mm2
外形尺寸：78(寬Wide)×54(高High)×45(厚Thick)
訂貨號Order No . 110154

型號：XKM/JTS2-150B/4×35
結構：一路進,四路出,分線端子 One-inlet, four-outlet, hsub-line terminal
截面：進線Line 70-150mm2,出線Outlet 6-35mm2
外形尺寸：78(寬Wide)×54(高High)×45(厚Thick)
訂貨號Order No . 110155

型號：XKM/JTS2-150B/6×35
結構：一路進,六路出,分線端子 One-inlet, six-outlet, hsub-line terminal
截面：進線Line 70-150mm2,出線Outlet 6-35mm2
外形尺寸：78(寬Wide)×54(高High)×45(厚Thick)
訂貨號Order No . 110156

型號：XKM/JTS2-150B/8×25
結構：一路進,八路出,分線端子 One-inlet, eight-outlet, hsub-line terminal
截面：進線Line 70-150mm2,出線Outlet 6-25mm2
外形尺寸：78(寬Wide)×54(高High)×45(厚Thick)
訂貨號Order No . 110157
型號：XKM/JTS2-150B/10×16
結構：一路進,十路出,分線端子 One-inlet, ten-outlet, hsub-line terminal
截面：進線Line 70-150mm2,出線Outlet 2.5-16mm2
外形尺寸：78(寬Wide)×54(高High)×45(厚Thick)
訂貨號Order No . 110158

型號：XKM/JTS2-150B/12×10
結構：一路進,十二路出,分線端子 One-inlet, twelve-outlet, hsub-line terminal
截面：進線Line 70-150mm2,出線Outlet 2.5-10mm2
外形尺寸：78(寬Wide)×54(高High)×45(厚Thick)
訂貨號Order No . 110159

型號：XKM/JTS2-150B/15×6
結構：一路進,十五路出,分線端子 One-inlet, fifteen-outlet, hsub-line terminal
截面：進線Line 70-150mm2,出線Outlet 1.5-6mm2
外形尺寸：78(寬Wide)×54(高High)×45(厚Thick)
訂貨號Order No . 110160

型號：XKM/JTS2-95/2×95
結構：一路進,二路出,分線端子 One-inlet, two-outlet, hsub-line terminal
截面：進線Line 50-95mm2,出線Outlet 50-95mm2
外形尺寸：78(寬Wide)×54(高High)×45(厚Thick)
訂貨號Order No . 110161

型號：XKM/JTS2-95/4×35
結構：一路進,四路出,分線端子 One-inlet, four-outlet, hsub-line terminal
截面：進線Line 50-95mm2,出線Outlet 6-35mm2
外形尺寸：78(寬Wide)×54(高High)×45(厚Thick)
訂貨號Order No . 110162

型號：XKM/JTS2-95/6×35
結構：一路進,六路出,分線端子 One-inlet, six-outlet, hsub-line terminal
截面：進線Line 50-95mm2,出線Outlet 6-35mm2
外形尺寸：78(寬Wide)×54(高High)×45(厚Thick)
訂貨號Order No . 110163

型號：XKM/JTS2-95/8×25
結構：一路進,八路出,分線端子 One-inlet, eight-outlet, hsub-line terminal
截面：進線Line 50-95mm2,出線Outlet 6-25mm2
外形尺寸：78(寬Wide)×54(高High)×45(厚Thick)
訂貨號Order No . 110164

型號：XKM/JTS2-95/10×16
結構：一路進,十路出,分線端子 One-inlet, ten-outlet, hsub-line terminal
截面：進線Line 50-95mm2,出線Outlet 2.5-16mm2
外形尺寸：78(寬Wide)×54(高High)×45(厚Thick)
訂貨號Order No . 110165

型號：XKM/JTS2-95/12×10
結構：一路進,十二路出,分線端子 One-inlet, twelve -outlet, hsub-line terminal
截面：進線Line 50-95mm2,出線Outlet 2.5-10mm2
外形尺寸：78(寬Wide)×60(高High)×45(厚Thick)
訂貨號Order No . 110166

型號：XKM/JTS2-95/15×6
結構：一路進,十五路出,分線端子 One-inlet, fifteen-outlet, hsub-line terminal
截面：進線Line 50-95mm2,出線Outlet 1.5-6mm2
外形尺寸：78(寬Wide)×60(高High)×45(厚Thick)
訂貨號Order No . 110167

點擊
隱藏

微信
咨詢


掃一掃，了解更多！

電話
咨詢

0577-6161 6111
客服熱線
